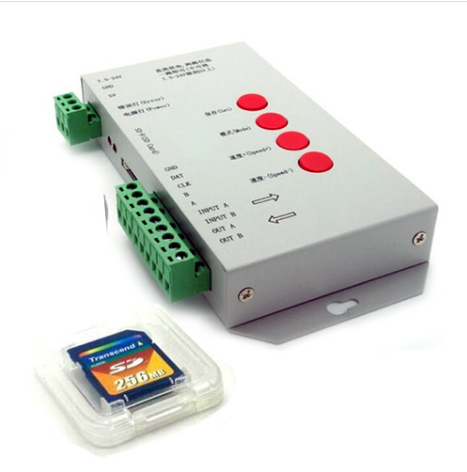

กล่องคอนโทรลเลอร์ T1000-S + SD card 256 MB

T-1000S System features

1. 32—256 Gray level, Support software Gamma correction.

2. Support the rules and special-shaped handle.

3. Single-port output, can support 2048 pixels.

4. Off-line(SD Card) control, play back content stored in the SD card.

5. T-1000S store a maximum of 16 programs, copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.

6. The program must be named in orders . just as 00_1.led, 01_1.led, 02_1.led.

7. Compatible with single line or double line chips.

NOTE:

1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.

2. T-1000S must use the new software LedEdit software.

Click here to download software 2019 LedEdit-K_v4.6.rar

2. T-1000S one TTL(SPI) signal and one RS485 signal port output, can control 2048 pixels/lamps.

3. This T-1000S controller max support 2048 pixels, Each of the LED WS2811 IC is a pixel, so if you want support longer of LED strips ,please select more controller.

4. When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

5. If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-),

6. If you need to control a new IC type by the controller, software code mode is, T-1000-IC model.

7. When the controller control less than 512 pixels the frame rate can reach 30fps, When control more than 512 pixels the frame rate will slow down automatically.

Safety

Supply voltage of this product is 5/12/24 Volts DC, do not exceed.

Shorting output wires my cause damage to dimmer.

Always observe proper polarity when connecting power and load.

For indoor use only - this product is not waterproof or weatherproof.

Note

QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

Connect according to the Wiring Schematic drawing.
