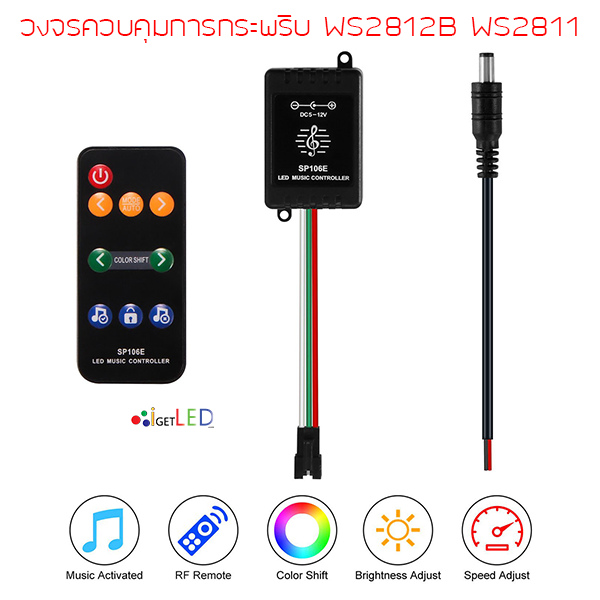

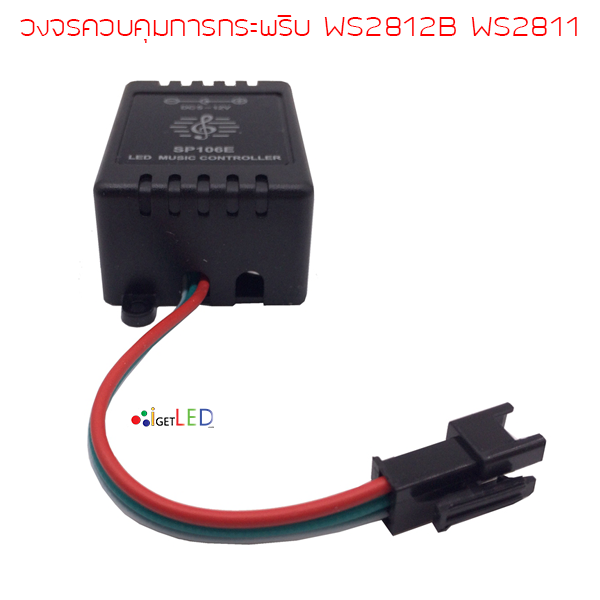

ชุดควบคุม LED RGB WS2811 ตามจังหวะเสียงเพลง SP106E

วงจรควบคุมการกระพริบ SP106E

ควบคุมด้วยรีโมท ระยะไกล รองรับสูงสุด 600 พิกเซล
กระพริบตามจังหวะเสียงเพลงได้ 5 รูปแบบ
โปรแกรมกระพริบอัตโนมัติ 20 รูปแบบ

Item Specifics / Description:
Features:
1. RF remote control, the distance up to 15M (no obstruction)
2. Wide voltage supply and anti-reverse connection
3. Colorful music mode + regular cool running mode
4. With power-down protection parameter function
5. Used for LED pixel light (phantom light bar, full color point light source)

Specifications:
Model: SP106E Dream Color Music Controller
Working voltage: DC 5V - 12V
Working current: 43mA - 45mA
Control points: 600 pixels
Output signal: SPI signal
Remote distance: 15 Meters
Built-in patterns: 5 music effects + 20 regular effects
Control mode: RF remote control
RGB order: RGB (customizable)
Working temperature: -25 degrees C - 85 degrees C
Support IC: Supports common LED driver IC on the market

Cautions:
1) Please make sure the power supply voltage match to your controller before you power it. Please NEVER connect it to any power supply which is more than 12V.
2) The controller can support DC5V~12V, but it cannot regulate the output voltage, that means the output voltage of your power supply must be the same as the work voltage of your led lights. Otherwise, your led light will be damaged. For example, if your led light is 5V, please don't connect a 12V power supply to the controller, otherwise it will destroy the entire led light.
3) The controller only supports LED lights with smart IC such as WS2812B WS2811 etc. It cannot support common RGB/RGBW LED strip without IC.

Package Included:
1x SP106E LED remote
1x Receiving controller
1x Male DC connector
