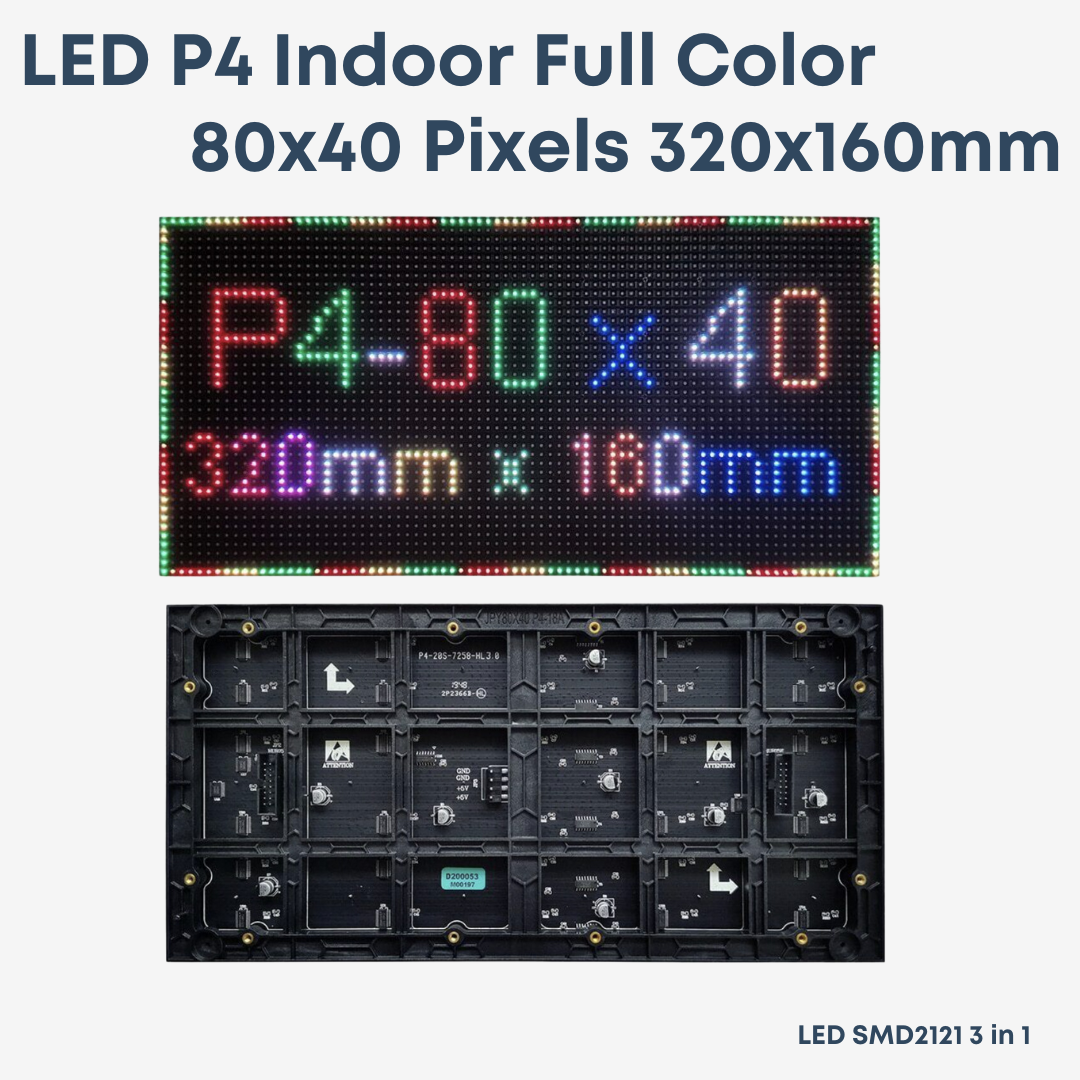

LED P4 Indoor RGB 80x40 Pixels ขนาด 320mmx160mm โมดูลจอแสดงผล LED RGB Panel

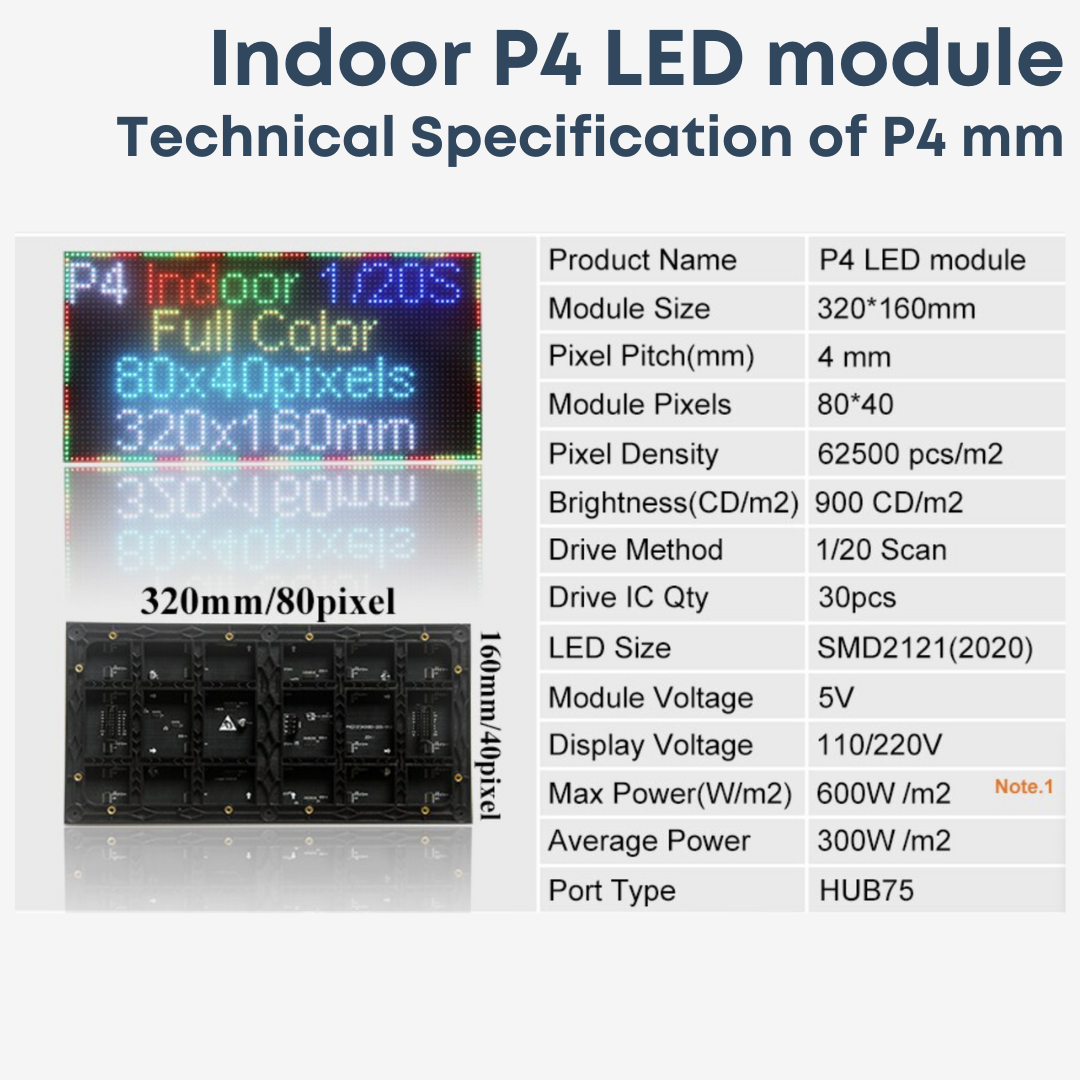

Indoor P4 LED module

Technical Specification of P4 mm:

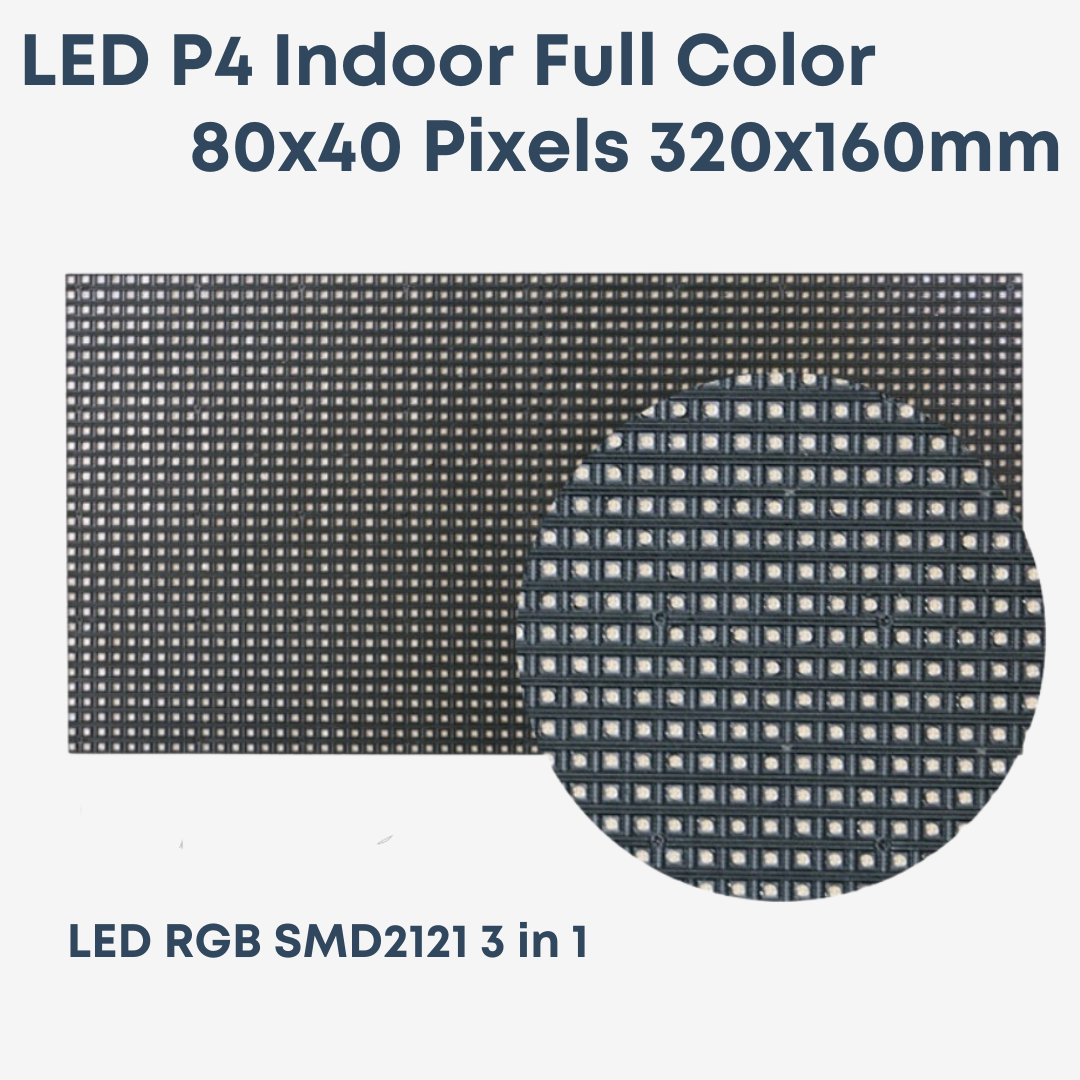

Pixel configuration

SMD2121 3 in 1

LEDs configuration

Red:wave length: 615~630nm;700-800mcd

Green:wave length: 515~530nm;1200-1300mcd

Blue:wave length: 465~475nm;400-500mcd

Pixel pitch(mm)

4

Pixel density(dots/㎡)

62,500

Calibrated brightness(cd/sqm,nit)

700 nits(adjustable)

Calibrated brightness proportion ratio

R: G:B = 30%:60%:10%(adjustable)

Color temperature

3,500°— 9,500° K(adjustable)

Contrast ratio

4,000:1(adjustable)

Brightness adjustment(dimming)

100 grade auto/manual-adjustment

View angle(degree)(50% brightness)

Horizontal: 120° (60° off center); Vertical:
70° (+25°/-45° off center)

Readability viewing angle

Horizontal: 150° (75° off center);

Vertical: 90° (+35°/-55° off center)

Color capability

4.4 trillion

Refresh rate(Hz)

>1200 Hz(adjustable)

Frame frequency(Hz)

>60Hz

Interface port

HUB75

Protection grade

IP31front side

LED Drive

Constant-current drive

Lifetime(hours)(50% brightness)

100,000 hours

Signal transmission direction

Horizontal

Operating temperature(Celsius degree)

-15～+55''

Storage temperature(Celsius degree)

-30～+65'

Operation humidity(RH)

10-95%

Operation humidity(RH)

10-99%

Servicing

Front and back serving optional

Control mode

Synchronous & asynchronous available

Power

5V DC

Maximum power consumption(W/SQM)

780

Average power consumption(W/SQM)

320

Screen operation mode(scan/static)

  1/20 Scan

Module configuration(Pixels quantities of
the module)

Length

80

Height

40

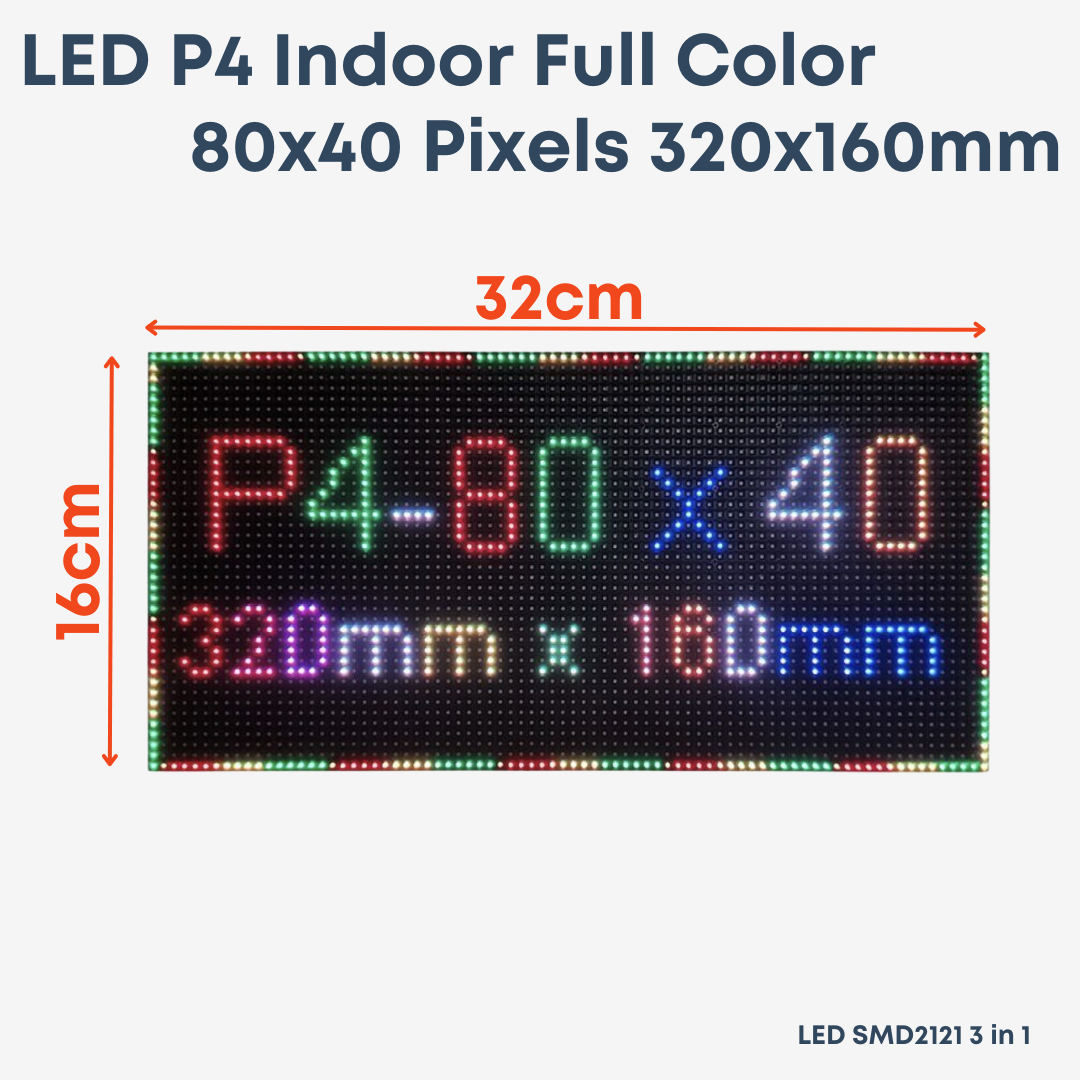

Module dimensions(mm)

Length

320

Height

160

Cabinet configuration(Module quantities of
the cabinet)

Length

Customized

Height

Cabinet dimensions(mm)

Length

Height

Width
